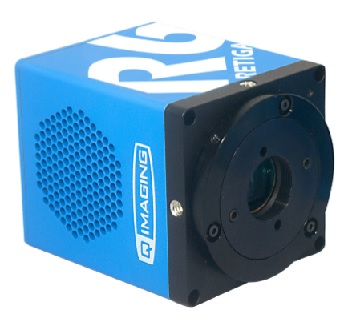

Qimaging公司高灵敏度相机
Sony ICX-695 Scientific Interline CCD
2688 x 2200像素, 4.54x4.54um
制冷温度:-20℃(空冷)
暗电流: 0.0009 e/p/s at -12ºC regulated
读出噪音:4.5e- rms
峰值QE: >75%
16bit/14bit图像输出
全幅图像读出速度:7.1fps
USB3.0输出
Sony ICX-695 Scientific Interline CCD (Color)
制冷温度:-12℃(空冷)
暗电流: 0.0007 e/p/s at -12ºC regulated
读出噪音:6e- rms
14bit图像输出
Sony ICX-825 Scientific Interline CCD (Monochrome)
1360 x 1024像素, 6.54x6.54um
制冷温度:0℃(空冷)
暗电流: 0.036 e/p/s at 15ºC regulated
读出噪音:5.5e- rms
全幅图像读出速度:22fps
